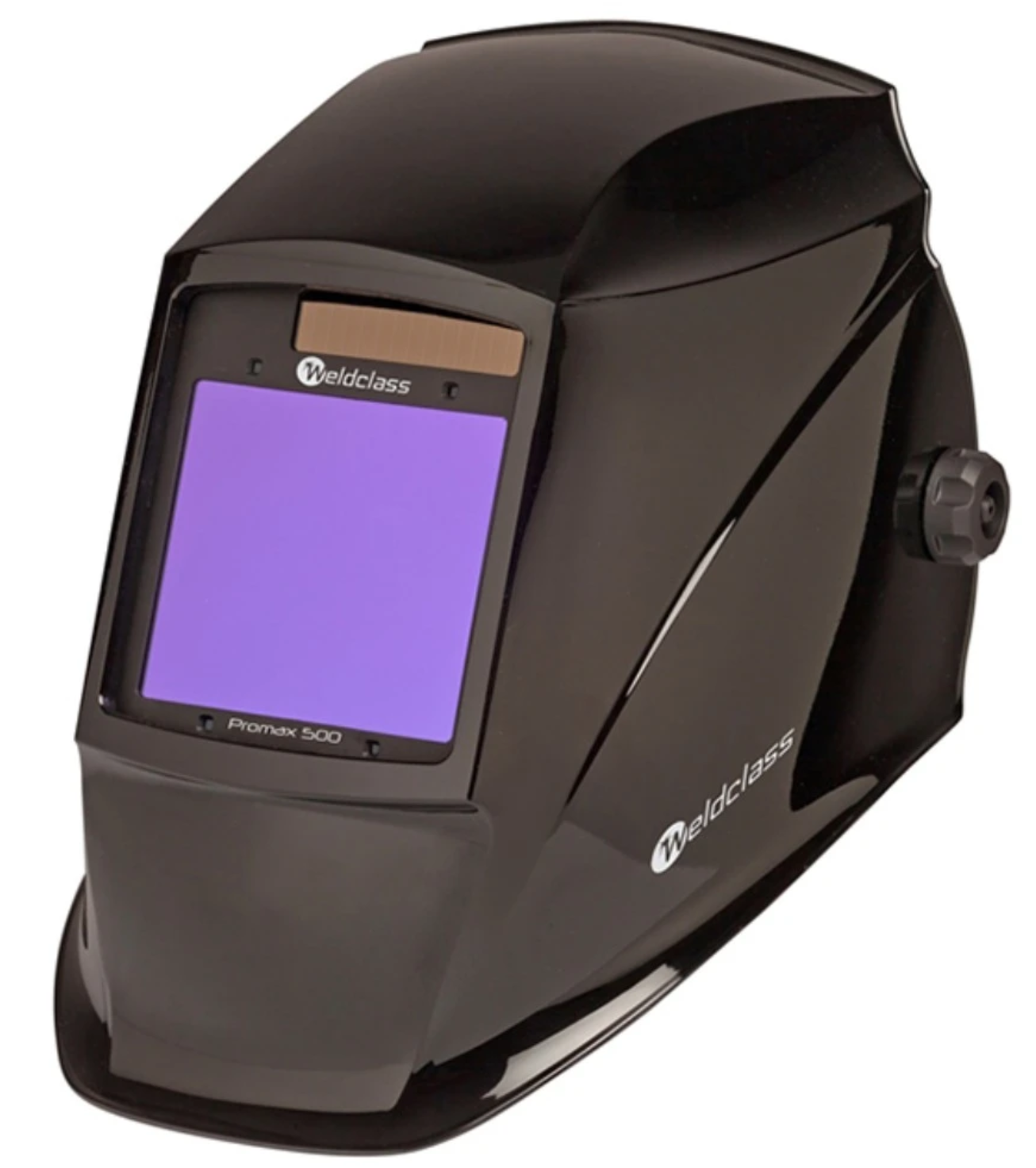

Weldclass Promax 500 Black Stealth Auto Darkening Welding Helmet - WC-05317

    Weldclass Promax 500 Black Stealth Auto Darkening Welding Helmet - WC-05317

    $199.00
    Call Us At (02) 9759 8833

    Features:

    • Super-size viewing Area 98x87mm (85cm2) with Ultra Clear Optics & ECR (Enhanced Colour Recognition)
    • 4 Sensors
    • Dual Shade Mode: (9-13 / 5-8)
    • Grind Mode... Turns the lens off so that you can use the helmet as a grinding shield
    • 2 Year Warranty
    • Magnification Lens Holder
    • High Impact rated to AS/NZS 1337.1
    • Suitable for MIG, MMA (stick) & TIG (down to 5 Amps)

    Specifications:

    • Suitable Welding Processes: MIG, MMA/Stick & TIG (≥5 amps), Grinding, Plasma Cutting, Oxy Cutting and Brazing
    • Suitable Applications: Industrial fabrication, Part time & full-time welding, maintenance welding, etc
    • Switching Speed: Conforms to & exceeds requirements of AS/NZS 1338.1 Standard
    • Arc Sensing: 4 Sensors
    • TIG Optimised: Yes. Suitable for low-amp TIG down to 5 amps
    • Power Supply: 1 x CR2450 replaceable battery & Solar assist
    • On / Off: Ready to use at any time, no switching required
    • Inactive Shade (Grind/Off): Shade 4
    • Active Shade (Weld): Dual range 5-8 / 9-13
    • Sensitivity: Low – High
    • Delay: 0.1 – 1.0 seconds
    • Grind Mode: Switchable On/Off
    • Weight: 560g
    • Viewing Area: 98 x 87mm
    • Cover Lens: - Inner 115 x 92mm
    • Magnification Lens Holder: Takes standard 108x51mm Magnification Lenses
    • Standards Compliance:
      • Lens: AS1338.1, EN379, ANSI Z87.1, CSA Z94.3
      • Shell: AS/NZS1337.1 High Impact EN 175 B, ANSI Z87.1, CSA Z94.3
    • Optical Rating: 1/1/1/2 (Optical quality / Diffusion of light / Variation in luminous transmittance / Angle dependency)
    • Warranty: 2 years (on auto darkening lens)
    • Temperature Range: Operating -5 °C to +55 °C/ Storage -10 to +65 °C
